5 Shelf Leaflet Holder Stand

Premium catalogue stand with 5 x A4 brochure shelves
Optional 40cm wide banner arm set
Silver aluminium pole and heavy base suitable for high footfall locations

5 Shelf Leaflet Holder Stand

Premium catalogue stand with 5 x A4 brochure shelves
Optional 40cm wide banner arm set
Silver aluminium pole and heavy base suitable for high footfall locations

From £272.40

Description/Code	1-4	5+	20+		QTY	ex VAT	Order
	Total Qty
Prices shown are ex VAT	Total

Qty

Some popular paper sizes...

Paper Size		Approx		Exact
Name	Notes	cm	inch	mm	inch (fractions)
A7		7 x 10 cm	3 x 4 inch	74 x 105 mm	2-7/8" x 4-1/8"
A6		10 x 15 cm	4 x 6 inch	105 x 148 mm	4-1/8" x 5-7/8"
1/4 A4		7 x 21 cm	3 x 8 inch	74 x 210 mm	2-7/8" x 8-1/4"
DL	1/3 A4	10 x 21 cm	4 x 8 inch	99 x 210 mm	3-7/8" x 8-1/4"
1/2 A4		10 x 30 cm	4 x 12 inch	105 x 297 mm	4-1/8" x 11-3/4"
A5		15 x 21 cm	6 x 8 inch	148 x 210 mm	5-7/8" x 8-1/4"
A4		21 x 30 cm	8 x 12 inch	210 x 297 mm	8-1/4" x 11-3/4"
A3		30 x 42 cm	12 x 16.5 inch	297 x 420 mm	11-3/4" x 16-1/2"
A2		42 x 65 cm	16.5 x 23 inch	420 x 594 mm	16-1/2" x 23-3/8"
A1		59 x 84 cm	23 x 33 inch	594 x 841 mm	23-3/8" x 33-1/8"
A0		84 x 119 cm	33 x 47 inch	841 x 1188 mm	33-1/8" x 46-3/4"

View our comprehensive and interactive paper size chart

Save for Later

Description

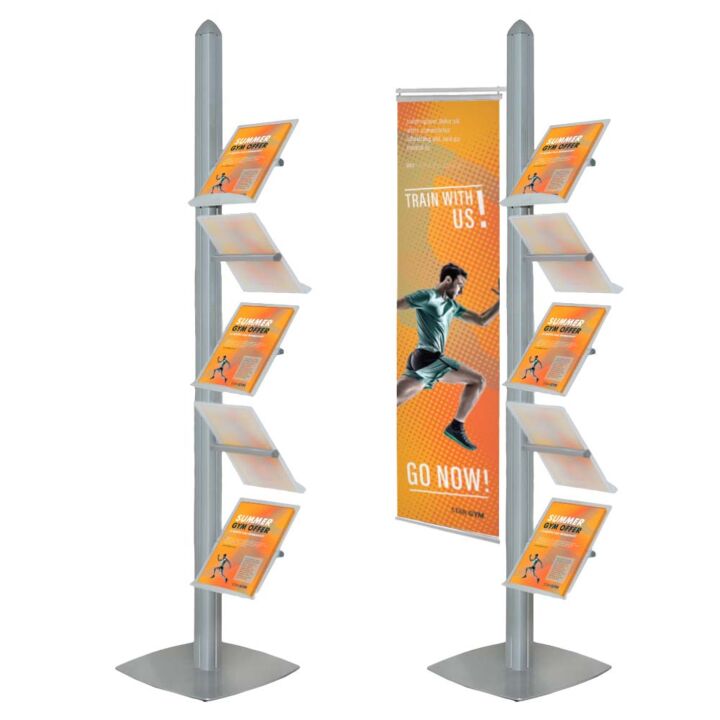

Leaflet dispenser stand 5 shelf with banner arm attachment

InfoRack leaflet holder stand comprising substantial round base and central mast with five shelves for leaflets or cataolgues. Versions are available with or without side banner arm set.

Strong and handsome 2m high leaflet holder stand with a smart satin silver finish.
Recessed channels on each side of the mast allow side shelves and banner arm to be secured in any position, facing either way (tiered or zig zag).
Five frosted 'ice' look acrylic brochure shelves (supported on metal arms) accommodate A4 leaflets, or pairs of DL leaflets side by side on one shelf. An up-stand retains leaflets to a depth of 40mm without slipping off.
Banner arm enables your own 400mm wide drop banner of any convenient height to be cantilevered to one side of the central mast. Bottom banner rail plus universal grippers are included with the banner arm option of this leaflet holder stand.

Actual shelf size:
W: 250mm
H: 320mm
D: 40mm

See the full range of InfoRack models here: Showroom Brochure Racks.

Leaflet holder stand version with banner arm:

Will accept any typical banner material such as paper, vinyl or fabric of various thicknesses.
Plastic grippers are supplied which clip onto the banner material and then slide into the extruded aluminium banner arm providing a neat concealed fixing.
Length of banner is not critical - anything from around 600mm to 1800mm drop looks fine (depending on whether the literature shelves are to be positioned on one side or both sides of the central pole).
Even if you don't have a banner to display consider buying the banner arm version as it can be added (and removed) as and when required.
Sorry we cannot supply banners but there are plenty of large format printers who can. Consider ordering a double-sided banner or use a simple image which will 'show through' successfully in reverse, depending on the banner material.

Assembly of InfoRack

The base and pole are common to other products in our InfoColumn range. The pole (or mast) is attached to the base from below. Fixings are supplied together with an hexagonal key to tighten up securely. Once assembled the base and pole are very sturdy and will take a lot of weight.

The top cap of the mast is removed to enable the banner arm and side-shelves to be slid down the appropriate channel from the top and nipped up tight when in position. Again the appropriate allen key is supplied. Final adjustment or subsequent re-arrangement is possible.

The 5 frosted acrylic shelves are secured onto the side support arms with screws, such that it is possible by unscrewing and repositioning to create a tiered (one sided) or zig zag display - the latter being ideal for double-sided brochure dispensing. The inclination of the shelves is fixed but they can be located on either side of the mast at any convenient height.

Whilst dismantling is possible it is probably more practical to keep the unit assembled and transport in that manner, if relocation is requred. The banner can be removed or exchanged easily.

Download Data Sheet
